Difference Between Vertical Mill and Ball Mill

Vertical mill mainly applied to powder processing of non-flammable and explosive brittle materials with medium, low hardness, Mohs hardness of 6. Ball mill is key grinding equipment afer materials are crushed. Vertical grinding is a "grinding bed" grinding equipment, and ball mill is "single-particle grinding" grinding equipment. They are very different in following aspects:

1.energy consumption of ball mill is low, it's a trend that it will be replaced by vertical mill machine, roller mill. However, ball mill has features that spherical shape of particles, is conducive to raw material calcination and hydration of cement hardening. This is why we choose ball mill for clinker grinding.

Micro Powder Mill Stone Powder Mill

Micro Powder Grinding Mill Vertical powder grinding mill

2.grinding method of the vertical mill is reasonable, grinding power are fully utilized by materials, and grading is in time to avoid the phenomenon of over-grinding materials. So it has high grinding efficiency, low power consumption (saving more than 20% than the ball mill)

3.vertical mill allows more wind through than ball mill. This increases the contact area of ??the material with the airflow, the heat exchange condition is good, so the drying efficiency is high.

4.occupied area of vertical mill is 50% to 70% of the ball mill.

5.lower initial cost. The cost of the initial installation, running costs and maintenance costs of vertical mill is only 70% to 80% of ball mill equipment.

6.vertical mill's input size of material is larger than ball mill. Ball mill is limited by its maximum ball diameter, can be only entered the smaller raw materials.

7.adjustment of the product fineness is convenient, particle size distribution is uniform, and chemical composition is stability.

8.with less dust, noise, vertical mill is conducive to environmental protection. There is no grinding between the body and the impact between the liner in grinding operation of vertical mill, so the noise is low. Pipe system is relatively simple, and is well sealed, mostly negative pressure operation, so it has less dust.

9.vertical mill has a short conversion time. Different raw materials can be changed in a very short period of time to produce different products(Ball mill is the opposite).

10.vertical mill has lower wear. There is no direct contact between the metal in operation, so the metal consumption is small.

11.vertical roller mill has simple process, vertical installation of equipment. Material grinding, drying and grading is at the same time, so it has small footprint, low probability of failure, saving money.

Vertical mill is not suitable for grinding hard and abrasive materials, because of shorter life and more frequently maintenance, and its wear parts is more expensive than the ball mill. Compared with ball mill, it still has features of maintain simple, easy and small workload.

The above is the main difference between vertical mill and ball mill. When you choose grinding mill, you must according to your specific material and yield required.

New Progress of White Carbon Black Powder Mill

White carbon is generic terms of white powder X-ray amorphous silicic acid and silicate products, mainly refers to the precipitated silica, fumed silica and ultrafine silica gel, also includes powdered synthetic silicic acid Aluminum and calcium silicate. It is mainly used in rubber products, agricultural chemicals, daily chemical products, cementing agent, anti-caking agent and paper filler.

With the strict requirements of energy-saving environmental protection from nation to tire products, use level of White Carbon Black is more, and the silica particle size required are becoming more stringent. As a professional supplier of grinding mills, Shanghai Clirik use unique powder technology to solve the question of discharging granularity of White Carbon Black Powder Mill.

The machine is a kind of vertical reflection Powder Grinding Mill, and it's equipped with grading device in the crushing room. Materials crushed are graded and collected by the role of air flow. The grading unit replaces the usual grinder sieve, and can simultaneously perform two processing steps of fine pulverization and fine powder sorting, and the pulverization efficiency is high. The machine also has a cooling function, its crushing temperature rise is low, and especially for processing heat-sensitive and fibrous materials. Compared with white carbon black grinder used at present, this White Carbon Black Powder Mill can process silica materials with a variety of fineness: 325-3000mesh.

0.3-30t/h Energy saving stone raymond mill price, Raymond Mill For Sale

Production description of Raymond mill:

Capacity: 1-20 t/h

Input size: 15-35 mm

Grinding Weight: 1.2 - 11 t

Finished size: 30-425 meshes

Production Models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.

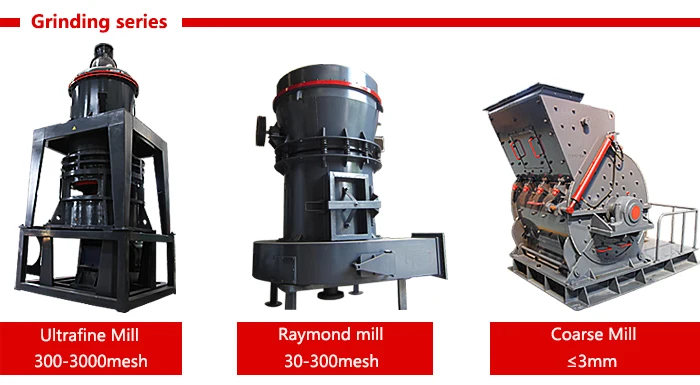

High Pressure Grinding Mill Micro Powder Grinding Mill

Coarse Powder Hammer Mill

Application of Raymond mill:

YGM, MTM series Raymond mill specializing in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries. It is suitable for processing various non-flammable and non-explosive mineral materials with Moh's hardness less than 9.3 and humidity less than 6%. It is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 30 and 425 mesh. Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, about 400 kinds of materials in total.

0.3-30t/h Energy saving stone raymond mill price, Raymond Mill For Sale

Structure of Raymond mill:

The whole set YGM, MTM Raymond mill is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.

Features of Raymond mill:

1.High Efficiency

Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

2.Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite.

3.High safety and reliability

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

4.High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

5.Environment-friendly

Technical parameter of Raymond mill:

Type	Roller			Max. feeding size(mm)	Fineness of product(mm)	Output (t/h)	Power of machine(KW)	Size(mm)
Type	No.	Dimension(mm)	Height(mm)	Max. feeding size(mm)	Fineness of product(mm)	Output (t/h)	Power of machine(KW)	Size(mm)
YGM7815	3	260	150	15	0.613-0.033	1-3	18.5	430035005100
YGM8314	3	270	140	20	0.613-0.033	1.2-4.6	22	530041005200
YGM9517	4	310	170	25	0.613-0.033	2.1-5.6	37	710059007900
YGM4121	5	410	210	30	0.613-0.033	2.8-10.5	75	920072509700
MTM1600	6	440	270	35	0.613-0.033	5-20	132	1255057008350

Our Company

As a leader enterprisewhich is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents that sell our products all over the world.Our products are widely used in the industry of mining, construction materials, chels, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM stone Raymond mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. We'll always follow your steps, pursue your value and achieve your profit.

Our Service

Pre-sales Service:Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support.Every customer has the chance to visit the working machinein the site before placing the order,we help to arrange cars, hotels, and translators for every visiting customer.

After-sales Service:Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the calcite site to help install the customers' plants. Necessary training about machinedaily maintenance to local workers is provided also.

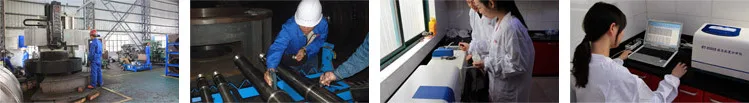

Our Technology

Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service. We'll give you the most professional service as the manufacturer.

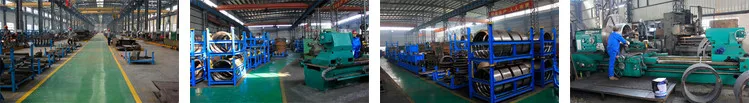

Our Factory

SHANGHAI CLIRIK machineRY CO., LTD located in PUDONG New district of Shanghai china, a factory of 50,000 square meter forstone Raymond millproduction, another factory of 40,000 square meter also in Shanghai for all kinds of crushers production.we are near the Shanghai Pudong New Airport, only 15minites by car, Welcome you come to visit our factory.

Thanks for your like !Send Message or Chat Now for Get Latest Price!!!

please tell me the following questions, so we can send you accurate quotation with additional discount:

♥ What's the raw materials you want to process(such as granite, basalt, river stone)?

♥ What is capacity you want tons per hour? such as10t/h,50t/h.

♥ Your email address or phone number

♥ Other requirements. (We are the leading manufacturer of mining machinery: raymond mill,ultrafine grinding mill,jaw crusher,hammer crusher,cone crusher....)

MTW Trapezoid Mill for sale

Hot sale mtw trapezoid mill, Low price mtw trapezoid mill with CE

1. Most professional mtw trapezoid mill

2. Energy-Saving about 20%~35%.

3.Stable performance

4.Most Competitive Price

Grinding Mill Ball mill Raymond Mill Micro powder grinding mill

Working principle of mtw trapezoid mill

1)Raw material which has been crushed to the size specified is elevated into a hopper from which the stuff is loaded. And then through the vibrating feeder ,the materials will transferred evenly and continuously into the mtw trapezoid mill in federal way grinding chamber for powder-processing. After this,the ground stuff is carried by the air from the blower into the classifer for regrinding.The set's airflow system is closely sealed up and circulated under the condition of negative and positive pressure.

2)It is driven by rotation of the central axle through decelerator ,with the up end of the axle connecting to a quincunx-rack upon which the grinding equipment is fixed. The whole set equipment turns together with the axle along the grinding ring while the rollers rotate driven by the fractional force .A set of shovel are installed at the lower end of the quincunx-rack.While turning together with the rollers ,the shovels shed the stuff onto the gap between the rollers and the ring ,and that's where the stuff layer forms .The rotating rollers ,while turning together with the ring ,grind the stuff layer into powder.

3) The turning speed of the impeller can be adjusted to the requirement of the fineness of powder products .

4) mtw trapezoid mill plays an important role in ensuring the function of the grinder . As the high-speed revolving air current mixed with ground stuff is flown into the cyclone-collector ,the ground stuff is separated from the air-current The total production procedure is continuous until the machine is shut down.

Technology Advantages of mtw trapezoid mill
